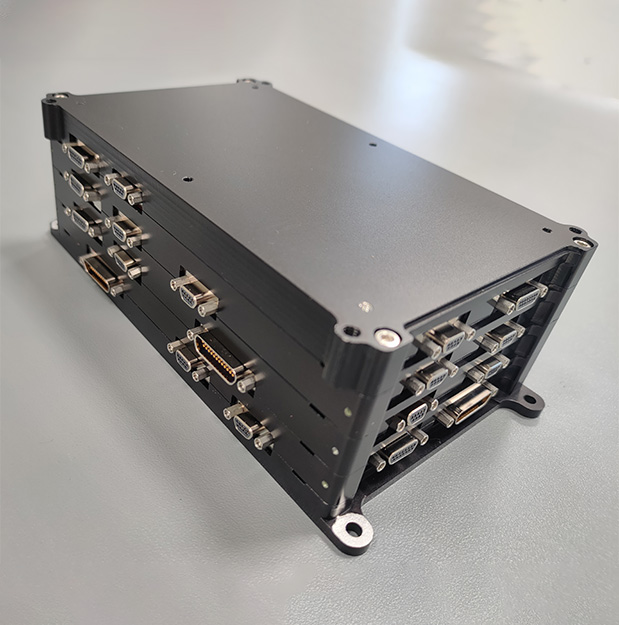

POWER CONTROL UNIT - PCU-110
The PCU-110 by Azista BST Aerospace Private Limited is the second generation of our flight-proven Power Control and Distribution Units. It's able to handle power regulation, power switching, DC/DC conversion and safety features of a small satellite. It is highly adaptable for different missions and subsystems.
| CHARACTERISTICS | DESCRIPTION |
|---|---|
| Main TMTC Interface | RS422 |
| Solar Panel Power In (standard) (optional) | 20-25V DC 12V, 15V, 18V, 28V |
| Regulated Power (standard) (optional) | 24V, 12V, 5V, 3.3V Any between 1.8V to 28V |
| Adjustable Switches and Fuses | Yes |
| Latch Protection | Yes |
| Battery Protection | Schmitt Trigger intelligent Power Management |
| MPPT | Optional |
| Size | 236x105x87mm³ |
| Weight | 0.96kg |
| Storage Temperature | -30°C to +50°C |
| Operating Temperature | -20°C to +40°C |
| Design Life | 5 years LEO |
